Bubble Washed Bead Filters:
|
|
|
|
|
|
These filters are designed and built by Aquaculture Systems Technologies in New Orleans, LA.
They have spent many years researching and perfecting the bubble-washed
|
|
|
|
|
|
bead technolgy as well as propeller washed bead technology.
These filters are designed for use with small recirculating ornamental and Koi ponds as well as large commercial fish hatcheries and farms. Whatever the size of your system, they have a filter that will take care of it! The benefits of using a bead filter are summarized below:
|
|
|
|
|
- Provides both biological & mechanical filtration
- Superior solids removal
- Excellent nitrification
- Uses low horsepower, low pressure pump
- Easy to install
|
|
|
- Perfect to connect to U.V. light
- No mechanical parts to wear out
- Small footprint
- Weather and salt water resistant
- Easily backflushed
- Proven and tested design
|
|
|
|
|
|
Bubble Washed Bead Filters:
|
|
|
|
|
|
|
|
|
|

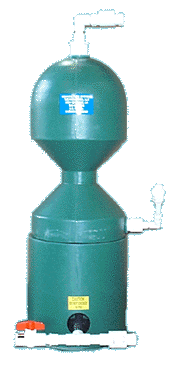

- New Design for 2001
- For Ponds up to 500 gallons
- Constructed of food grade, UV-stabilized, polyethylene plastic
- 1/4 cubic foot of media
- 100 square feet of surface area
- Maximum flow of 600 GPH (10 GPM)
- Size: 32"high x 10" dia
- Inlet pipe: 3/4" barb Outlet pipe: 3/4" barb Sludge pipe: 1" barb
- Backwash water loss: 5 gal.
- Maximum pressure: 10 psi
- Recommended pumps:
|
|
|
|
|
|
|
|
|
|
|

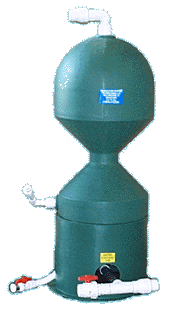

- New Design for 2001
- Ponds up to 1,000 gallons
- Constructed of food grade, UV-stabilized, polyethylene plastic
- 1/2 cubic foot of media
- 200 square feet of surface area
- Maximum flow of 600 GPH (10 GPM)
- Size: 36"high x 12" dia
- Inlet pipe: 3/4" barb Outlet pipe: 3/4" barb Sludge pipe: 1" barb
- Backwash water loss: 6 gal.
- Maximum pressure: 10 psi
- Recommended pumps:
|
|
|
|
|
|
|
|
|
|
|

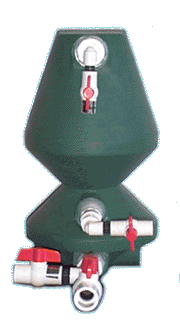

- Ponds up to 2,000 gallons
- Constructed of food grade, UV-stabilized, polyethylene plastic
- 1 cubic foot of media
- 400 square feet of surface area
- Maximum flow of 1000 GPH (16 GPM)
- Size: 45" high x 17" dia.
- Inlet pipe: 1" slip, Outlet pipe: 1" slip, Sludge pipe: 1" FIPT
- Backwash water loss: 12 gal.
- Maximum pressure: 10 psi
- Recommended pumps:
- Oase Nautilus 30
- Sequence 500
- Sequence 750
|
|
|
|
|
|
|
|
|
|
|

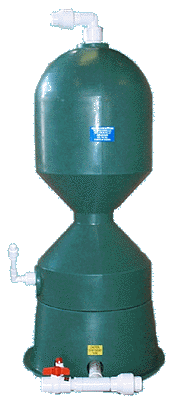

- Ponds up to 4,000 gallons
- Constructed of food grade, UV-stabilized, polyethylene plastic
- 2 cubic feet of media
- 800 square feet of surface area
- Maximum flow of 1800 GPH (30 GPM)
- Size: 59" high x 27" dia.
- Inlet pipe: 1-1/2" slip Outlet pipe: 1-1/2" slip Sludge pipe: 1-1/2" FIPT
- Backwash water loss: 25 gal.
- Maximum pressure: 10 psi
- Recommended pumps:
- Sequence 1000, 1/6 HP #3 impeller
|
|
|
|
|
|
|
|
|
|
|
- Ponds up to 8,000 gallons
- Constructed of food grade, UV-stabilized, polyethylene plastic
- 4 cubic foot of media
- 1,600 square feet of surface area
- Maximum flow of 3,900 GPH (65 GPM)
- Size: 78" high x 32" dia.(including plumbing)
- Inlet pipe: 2" slip Outlet pipe: 2" slip Sludge pipe: 2" FIPT
- Backwash water loss: 45 gal.
- Maximum pressure: 10 psi
- Recommended pumps:
|
|
|
|
|
|
|
|
|
|
|

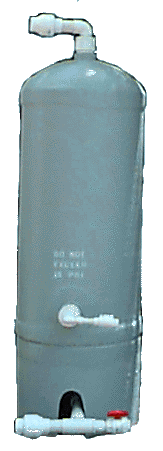

- Ponds up to 12,000 gallons
- Constructed of heavy-duty food grade fiberglass
- 6 cubic foot of media
- 2,400 square feet of surface area
- Maximum flow of 5,400 GPH (90 GPM)
- Size: 76" high x 37" dia.
- Inlet pipe: 2" FIPT Outlet pipe: 2" slip Sludge pipe: 2" FIPT
- Backwash water loss: 65 gal.
- Maximum pressure: 15 psi
- Recommended pumps:
|
|
|
|
|
|
|
|
|
|
|

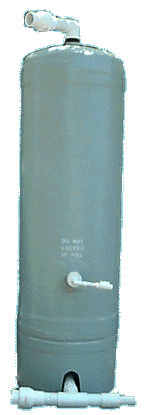

- Ponds up to 20,000 gallons
- Constructed of heavy-duty food grade fiberglass
- 10 cubic foot of media
- 4,000 square feet of surface area
- Maximum flow of 9,000 GPH (150 GPM)
- Size: 82" high x 43" dia
- Inlet pipe: 3" MIPT Outlet pipe: 3" slip Sludge pipe: 3" FIPT
- Backwash water loss: 150 gal.
- Maximum pressure: 15 psi
- Recommended pumps:
|
|
|
|
